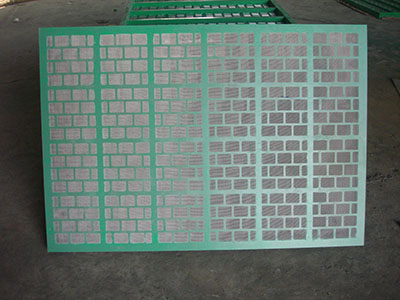

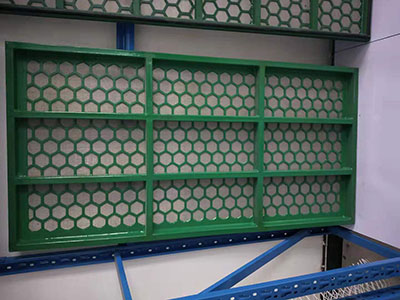

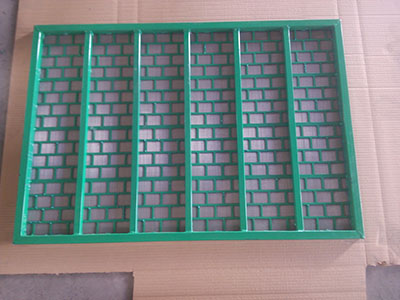

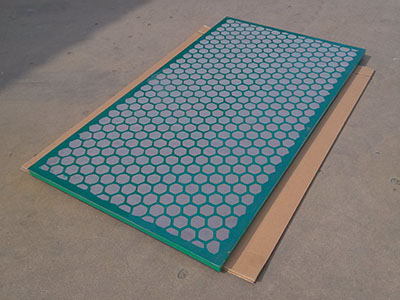

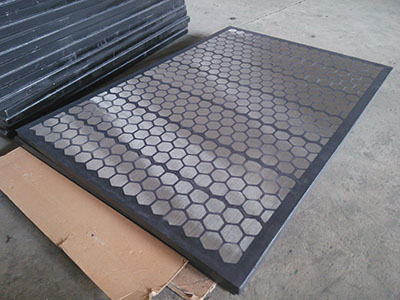

Steel Frame Screen

Steel Frame Screen is the most widely used screen,the features of screen of this type:

1.The stainless steel wire cloth combined directly bonded on the steel plank, then tightly bonded together by steel frames and metal plank.

2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micro mesh.

3.It forms a reliable whole, with high-strength steel frame, reinforced supports and moderate tension screening cloth, which greatly enhances the tolerate flow, strength and working life .Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

4. The surface is divided into more small parts. They can prevent excessive expansion of local damage. At the same time, we have the special rubber plug to repair the damage. It can save time and reduce the cost.

Screen Model	Range of Mesh	*Dimension(WL)**	Brand&Model of shaker
GMTK-1	20-325	585×1165mm	MONGOOSE
GMTK-2	20-325	635×1253mm	KING COBRA
GMTK-3	20-325	913×650mm	VSM300
GMTK-4	20-325	720×1220mm	KTL48 SERIES
GMTK-5	20-325	712×1180mm	D380
GMTK-6	20-325	737*1067mm	FSI 50＆500＆5000

API RP 13C(ISO 13501)
D100 Particle sizing（Micron）	API Standard Screen Number
>780.0 to 925.0	API 20
>655.0 to 780.0	API 25
>550.0 to 655.0	API 30
>462.5 to 550.0	API 35
>390.0 to 462.5	API 40
>327.5 to 390.0	API 45
>275.0 to 327.5	API 50
>231.0 to 275.0	API 60
>196.0 to 231.0	API 70
>165.0 to 196.0	API 80
>137.5 to 165.0	API 100
>116.5 to 137.5	API 120
> 98.0 to 116.5	API 140
> 82.5 to 98.0	API 170
> 69.0 to 82.5	API 200
> 58.0 to 69.0	API 230
> 49.0 to 58.0	API 270
> 41.5 to 49.0	API 325
