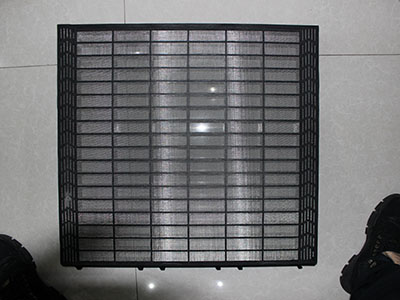

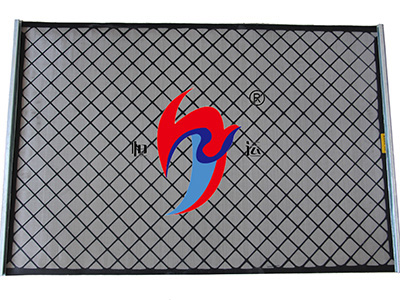

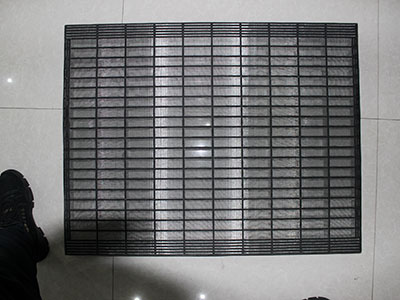

Composite Frame Screen

1.Composite frame screen is mainly composed of composite frame and 2 or 3 layers stainless steel wire cloths. The wire cloth can be combined with the frame with metal rubber lining, or directly bonded on the frame.

2.Every layer of wire cloth has different meshes, accurately and reasonably making screening more micromesh.

3.High-strength composite frame screen and moderate tensional screening cloth, that form a reliable whole, greatly enhance the tolerable flow .

4.Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

5.Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.

6. Excellent high-strength composite frames enhance corrosion resistance. Have good shock absorption and extend working life of screen .

Screen Model	Range of Mesh	*Dimension(WL)**	Brand&Model of shaker
GMF-1/1	20-325	585×1165mm	MONGOOSE PT＆PRO
GMF-1/2	20-325	585×1165mm	MONGOOSE PT＆PRO
GMF-2/1	20-325	635×1250mm	KING COBRA＆COBRA
GMF-2/2	20-325	635×1250mm	KING COBRA＆COBRA
GMF-3	20-325	610×660mm	MD-2＆MD-3

API RP 13C(ISO 13501)
D100 Particle sizing (Microns)	API Screen Number
>780.0 to 925.0	API 20
>655.0 to 780.0	API 25
>550.0 to 655.0	API 30
>462.5 to 550.0	API 35
>390.0 to 462.5	API 40
>327.5 to 390.0	API 45
>275.0 to 327.5	API 50
>231.0 to 275.0	API 60
>196.0 to 231.0	API 70
>165.0 to 196.0	API 80
>137.5 to 165.0	API 100
>116.5 to 137.5	API 120
> 98.0 to 116.5	API 140
> 82.5 to 98.0	API 170
> 69.0 to 82.5	API 200
> 58.0 to 69.0	API 230
> 49.0 to 58.0	API 270
> 41.5 to 49.0	API 325
